This is quite a common problem with LG and Samsung LCD TVs so I though I'd post it incase anyone else comes across it. The 32" set is a few years old but still has a good picture, the problem was the power switch - it wouldn't turn on with either the button on the side or the remote, just a flashing red light.

The shiny electronics stores want between 4 and 6k for a repair, or they'll try and sell you a new TV. More often than not though you just get a "mai dai" or "mai mee" before you've even finished the sentence.

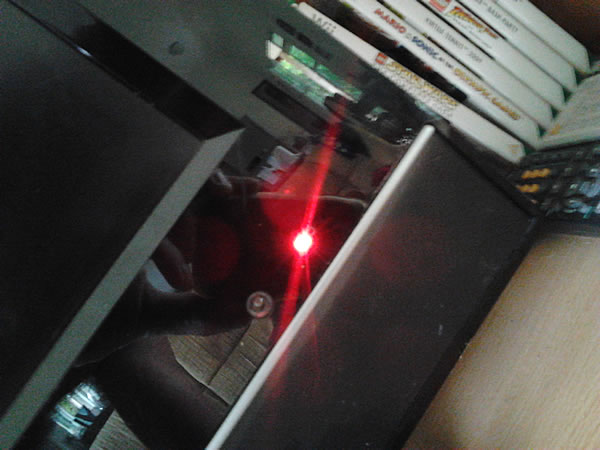

Here's the prob, wont power on, light just flickers:

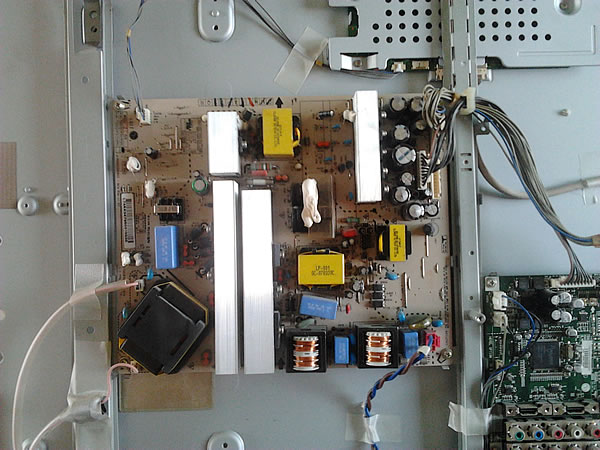

A little research indicated the power board and capacitors were the culprit so I took to it with a screwdriver, this is the power supply panel:


And there you go, 4 bulging capacitors:


A quick trip to mr fix it with the removed board, 15 minutes with a solder gun, and four new 2200µF caps on:


Re-attached the cables, screwed the box back together and voila:


A perfectly good LCD TV again.

Cost of a new set: 15-20k
Cost of repairing this one in a shop: 4-6k
Cost of doing it yourself: 200 baht
Moral of this story: don't take the bullshit!
